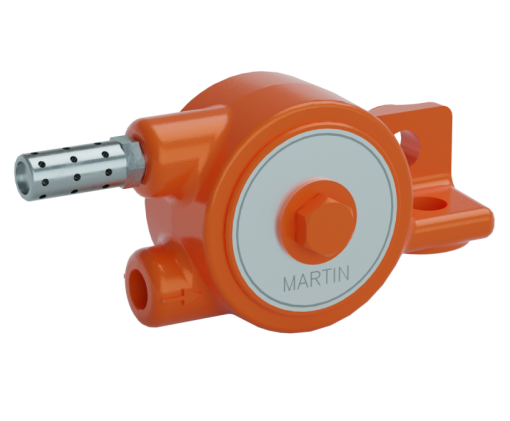

Martin Vibroller ARL-13Y Roller Vibrator

Brand Martin
Series ARL/BDR
Model ARL-13
Item # ARL-13Y
Quantity

Overview

Small and lightweight to fill a multitude of application needs. Maximum VPM ranges from 19000 to 26000 with power to handle bins with material in excess of 2000 lbs in the sloped portion. This unique dual-mount bracket offers a wide choice of mount position and vibration direction. Tapped exhaust allows unit to be equipped with muffler regulator for quiet, controlled vibration to fill your needs.

Specifications

Force @ 80 PSI 142 lbf
Speed @ 80 PSI 25000 vpm
CFM @ 80 PSI 6 cfm
Weight 1.90 lbs
Port NPT 1/8"
Unbalance 0.008 in-lb
Old Model # BDR-13
Force @ 60 PSI 131 lbf
Speed @ 60 PSI 24000 vpm
CFM @ 60 PSI 4 cfm
Force @ 40 PSI 110 lbf
Speed @ 40 PSI 22000 vpm
CFM @ 40 PSI 2 cfm
Max Material in Slope 1420 lbs

Dimensions

A: 3.8

B: 2.1

C: 1.5

D: 1.6

E: 0.6

F: 1.6

G: 0.3

H: 0.4

J: 1.1

K: 0.3

L: 1.3

Downloads

  • Vibroller Roller Vibrators Technical Data

  • Vibroller ARF, ARU, ARL Roller Vibrators Operator Manual
