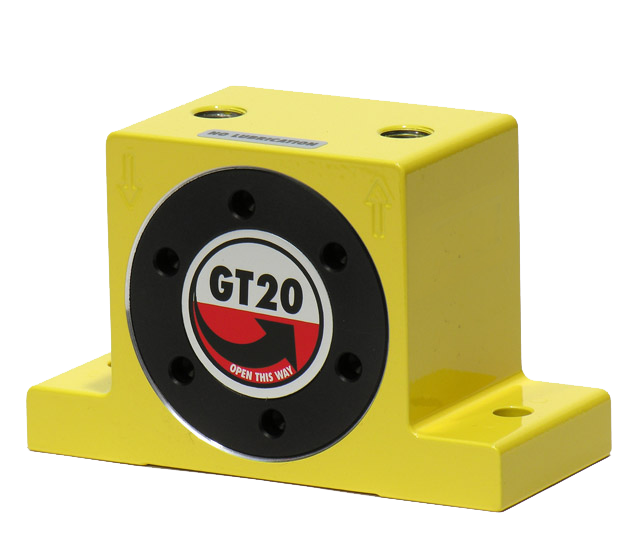

Vibratek VGT-20 Turbine Vibrator

Brand	Vibratek
Series	VGT Series
Model	VGT-20
Item #	12-22000

Quantity

Overview

The Vibratek VGT Series assists the flow of materials from bins, hoppers, and chutes, and compacts silica sand in moulds of foundries.

Specifications

Force @ 90 PSI	1240.00 lbf
Speed @ 90 PSI	23000 vpm
CFM @ 90 PSI	15.9 cfm
dBA	60 - 75 dBA
Port	1/4"
Weight	2.46 lbs
Force @ 60 PSI	909.00 lbf
Speed @ 60 PSI	20000 vpm
CFM @ 60 PSI	11.4 cfm
Force @ 30 PSI	488.00 lbf
Speed @ 30 PSI	17000 vpm
CFM @ 30 PSI	6.5 cfm
Operating Temp	302°F

Dimensions

Dim A: 3.15

Dim B: 2.20

Dim C: 5.04

Dim D: 4.09

Dim E: 0.63

Dim G: 0.25

Dim F: 0.35

Downloads

VGT-20 Technical Data
VGT Series Operator Manual
