Brand BN Products
Series Electric
Item # DBR-25WH
Quantity

Overview

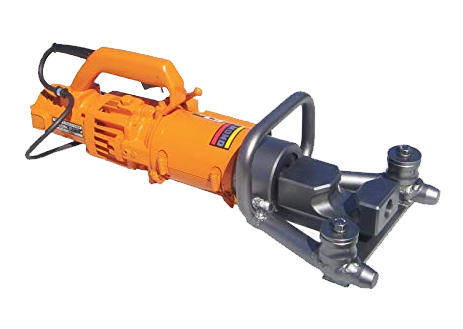

The DBR-25WH Portable Electric/Hydraulic Rebar Bender & Straightener is a heavy-duty tool that saves valuable man-hours by cleanly and efficiently bending or straightening bent rebar. It functions as a simple 90° portable electric rebar bender. The interchangeable bending hook covers diameters from #4 to #8 GR-60 rebar. Maximum pressure for bending and straightening ranges from 8.5 to 11-tons. It’s portable and versatile enough to bend or straighten rebar in-place with its push/pull hydraulic capabilities. It will bend a 90° angle in only four seconds. The bending head also rotates 360°. Ships complete in a wooden carrying case with hydraulic oil, a tool kit and two additional bending dies.

Specifications

Mobility Portable
Weight 62.3 lbs
Power Supply 120V/1Ph/50-60 Hz; 12-Amps
Bend Angle/Speed #4: Up to 94°/14 sec; #8: Up to 90°/14 sec
Dimensions (L x W x H) 25.75" x 10.5" x 7.8"
Max Bend Dia #8 Rebar, 1" Dia; GR-60

Downloads

  • DBR-25WH Rebar Bender Operator Manual

  • DBR-25WH Parts Breakdown

  • DBR-25WH Rebar Bender Brochure

  • BN Products Concrete Tools Catalog
