Global Mfg Air Motor Driven Vibrator

Brand Global Mfg
Series Design Series
Model CC7
Item # CC7-50-6AC
Quantity

Overview

Global's Design Series Rotary Vibrators use an an external air motor to drive the shaft mounted eccentric weights to produce vibration. Vibrators are able to product substantially more force than other vibrators because of the separate motor.

Specifications

Force @ 80 PSI 26870 lbf
Speed @ 80 PSI 4350 vpm
CFM @ 80 PSI 93 cfm
Mount Type Clamp Foot
Force @ 60 PSI 19970 lbf
Speed @ 60 PSI 3750 vpm
CFM @ 60 PSI 67 cfm
Force @ 40 PSI 10350 lbf
Speed @ 40 PSI 2700 vpm
CFM @ 40 PSI 48 cfm
Weight 96 lbs
Unbalance 50 in-lbs
Start-Up Pressure 25 PSI

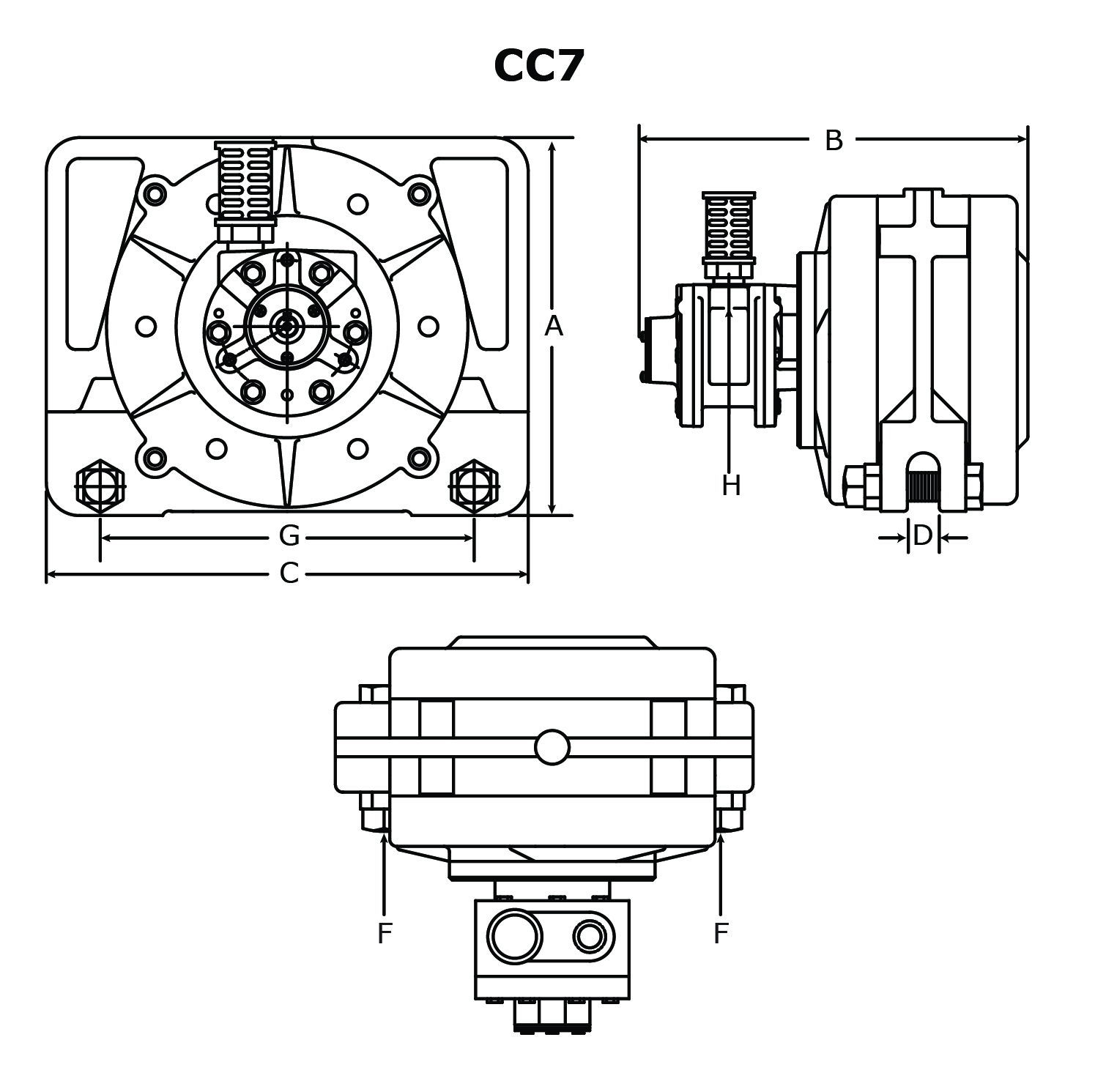

Dimensions

Dim A: 11.38

Dim B: 13.84

Dim C: 14.50

Dim D: 1.12

Dim G: 11.25

Dim F: Clamp

Dim H: 3/4 - 14 NPT

Downloads

  • GLOBAL Design Series Vibrators Technical Data

  • CC7/D7 Pneumatic Vibrator Operator Manual
