Houston Vibrator HU-13 Rotary Ball Vibrator

Brand Houston Vibrator
Series HU
Model HU-13
Item # HU-13
Quantity

Overview

Houston Vibrator's H Series Iron Body Ball Vibrators are available in two different mounting styles, and feature three different inlet/exhaust configurations. There are 10 models to choose from in all. Because of their various designs, these vibrators can be installed on many types of containers and machines. Frequencies range from 2,100 to 21,000 VPM, with forces to 800 lbs, depending on model and air pressure. H Series Ball Vibrators are proudly manufactured in Houston, TX.

Specifications

Force @ 80 PSI 110 lbf
Speed @ 80 PSI 21000 vpm
CFM @ 80 PSI 8 cfm
dBA 80 dBA @ 60 PSI
Mount Bolt-On (2)
Inlet 1/8" NPT
Weight 1.5 lbs
Force @ 60 PSI 95 lbf
Speed @ 60 PSI 19500 vpm
CFM @ 60 PSI 7 cfm
Force @ 40 PSI 55 lbf
Speed @ 40 PSI 15500 vpm
CFM @ 40 PSI 5 cfm
Force @ 20 PSI 35 lbf
Speed @ 20 PSI 12500 vpm
CFM @ 20 PSI 3 cfm

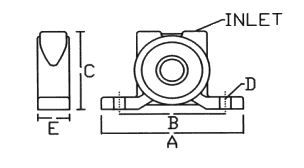

Dimensions

A: 5.250

B: 4.000

C: 2.625

D: 1.000

E: 1.188

F: 0.437

Downloads

  • HOUSTON H Series Ball Vibrators Technical Data

  • HOUSTON H & SK Ball Vibrators Operator Manual
