Brand OLI
Series VFV
Model VFV 100 25/6
Item # SPX080V02B07VQ
Quantity

Overview

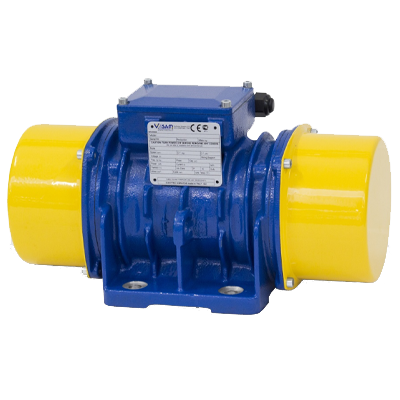

High frequency electric vibrators are used in precast concrete plants to obtain products that meet appearance and weather resistance requirements. The OLI range of external electric vibrators includes fixed frequency models and variable frequency models.

Specifications

Mount Bolt-On
CF Range 5,000 to 9,999 lbf
RPM 0 - 6000
Voltage 230 / 400
Hz 0 - 100
Weight 925.94 lbs
CF (lbf) 5732 lbf
Frame Size 8
Max Current (A) 7.96 / 4.60 A

Dimensions

Dim A: 5.9

Dim B: 7.48

Dim C: 16.14

Dim D: 11.02

Dim E: 10.15

Dim G: 0.66

Dim F: 1.18

Dim H: 4.60

Dim I: 8.93

Dim L: 10.23

Dim M: 2.91

Dim N: 8.34

Downloads

  • OLI Industrial Vibrators Brochure
