Martin STSXHDQC Primary Belt Cleaner Assembly

Brand Martin
Series QC1 XHD STS
Model STSXHDQC
Item # STSXHDQC-421136T
Quantity

Overview

Tackles the tough jobs. Designed for rugged conditions, this sturdy cleaner’s stainless steel mandrel allows the blade cartridge to be serviced without confined space entry or breaking the safety plane. Changing the blade is a simple one-pin operation, making replacement of a worn blade a safe and simple procedure.

Specifications

Belt Width 42"
Belt Coverage 36"
Pulley Diameter 24" to 30"
Max Belt Speed 900 fpm
Operating Temp Range -30°F and 300°F
Blade Style Solid
Mainframe Length 55.25"
Tensioner Type Spring Tensioner
Mandrel Length 72.75"
Mainframe Type Painted Steel
Urethane Color Orange - Standard
Compatible w/ Reversing Belts or Roll Backs Yes

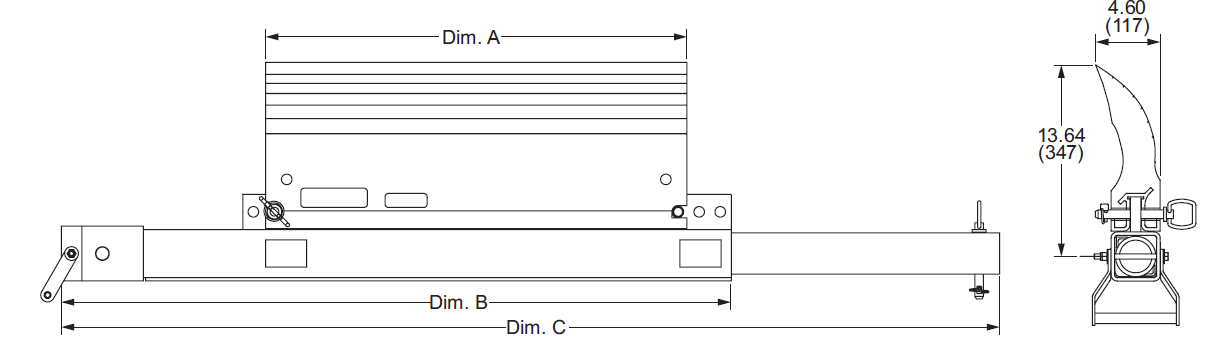

Dimensions

Downloads

  • QC1 Cleaner XHD STS Technical Data

  • QC1 Cleaner XHD STS Operator Manual

  • MARTIN Belt Cleaner Brochure

  • MARTIN ENGINEERING Catalog
