Three-Phase Vibration Motor vs. Single-Phase Vibration Motor: What’s Best for Outdoor Use?

By Rob Beiersdorfer

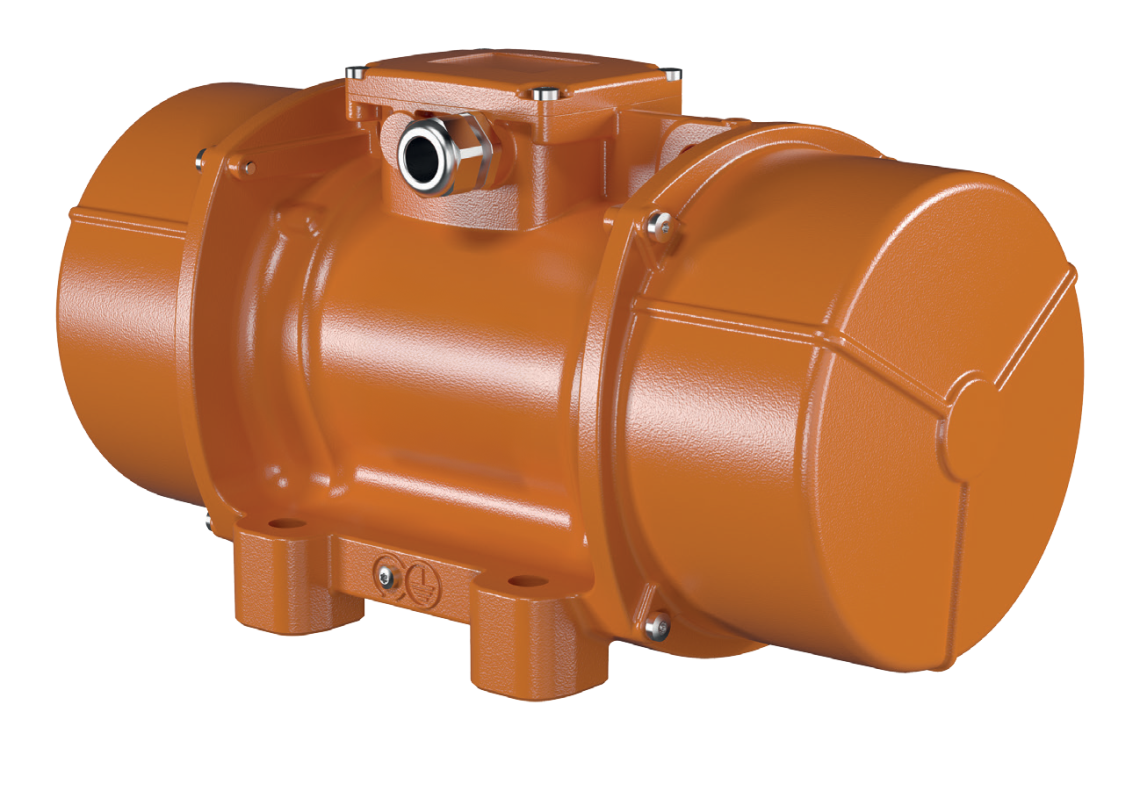

What Are Three-Phase Rotary Electric Vibrators?

Three-phase (3-Ph) rotary electric vibrators are motors designed to produce vibration through the rotation of eccentric weights powered by three-phase electricity. They are designed for demanding industrial applications, especially outdoors, where reliability, high force output, and resistance to environmental stressors are important. Three-phase vibrators eliminate the need for capacitors, simplifying their design while improving efficiency and durability in harsh conditions.

Advantages of Three-Phase Rotary Electric Vibrators

Three-phase rotary electric vibrators are specifically engineered to meet the demanding conditions of outdoor applications. Their design and power delivery provide distinct advantages over single-phase vibrators, which become apparent in four key areas:

1. Superior Force Output for Demanding Conditions

Typically, outdoor applications require larger sized vibrators due to the elements and temperatures they encounter during operation. A few examples of these elements are frozen materials, damp or wet materials, and heat-affected materials that can make the materials sticky. All of these elements require vibrators with a larger force output for efficient bulk material flow.

Three-phase vibrators overcome material flow challenges with higher torque and greater force output. Unlike smaller units limited by single-phase constraints, three-phase motors efficiently rotate larger eccentric weights without excessive current draw. Their three-phase power system ensures smooth starts, even under heavy loads, avoiding the inefficiencies of single-phase capacitor dependency.

Single-phase power quickly and dramatically increases the amperage required to overcome the starting torque requirements; it simply becomes inefficient to use single-phase power as vibratory motor size increases.

2. Optimized Power Efficiency

Three-phase motors eliminate the need for bulky capacitors and oversized wiring. Their balanced current delivery reduces amperage spikes, lowering operational costs compared to single-phase systems. This design ensures consistent performance in high-amp outdoor applications.

In order to use single-phase electricity in a high amp situation, the conducting wire gauge becomes large quickly. Typically, for a single-phase motor, you require capacitors to increase the amperage needed to power the start-up. Again, it becomes very inefficient and expensive to use larger capacitors as the power consumption increases.

3. Cost-Effective Operation

Three-phase power is inherently more economical than single-phase for industrial use. Three-phase vibrators leverage this advantage, reducing energy expenses over time while maintaining reliable operation in harsh environments.

4. Cold-Weather Reliability

Three-phase vibrators handle sub-zero temperatures effortlessly. Their self-starting motors resist grease thickening and bearing stiffening, ensuring smooth rotation even during cold starts. This eliminates the shutdowns common in single-phase units struggling with increased torque demands.

In a single-phase vibrator, as the cold motor struggles to rotate the weight sets, the torque requirement increases, and the current requirement rises quickly. The increased torque and amp-draw requirements overload the starter circuits, and the motor shuts off.


Single-phase vibrators are ideal in specific applications, but they are limited by size and function. It is important to use them in applications best suited to their operational limitations.

Rob Beiersdorfer is Vibration Products Manager at AIRMATIC and has over 30 years of applied vibration experience in a wide range of industries.
