Brand Italvibras
Series VU
Model VU 12-16000
Item # 0605032
Quantity

Overview

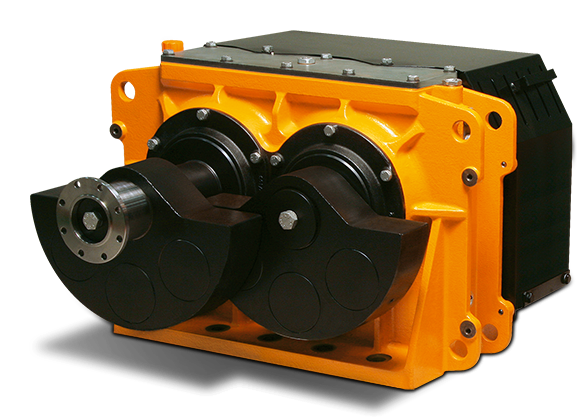

Italvibras' VU series linear motion exciters are tailored for medium to large-scale vibrating machinery across various industrial applications. Engineered with cutting-edge design and premium components, they deliver optimal performance, minimal operating noise, and extended bearing and gear lifespan. Model VU exciters can be seamlessly installed in-line using cardan shaft connections to enhance centrifugal force.

Specifications

Centrifugal Force @ Min Wgt Set 40241
Centrifugal Force @ Max Wgt Set 39342
Max RPM @ Min Wgt Set 1430
Max RPM @ Max Wgt Set 1000
Static Moment Min 692 in-lb
Static Moment Max 1387 in-lb
Frame Size 295
Drive Motor Rating 15 hp
Weight @ Min Wgt Set 955 lb
Weight @ Max Wgt Set 1122 lb

Dimensions

N°: 8x1"

A: 29.92

B: 20.02

C: 10.63

D: 1x8.66

E: 7.48

F: 1.18

G: 1.02

H: 11.02

K: 15.31

L: 19.59

M: 25.2

N: 26.38

ØP: 4.21

D1: 2x4.33

O: 2.74

Downloads

  • VU Mechanical Force Excitors
