Uras KEE-2-2 Rotary Electric Vibrator

Brand Uras
Series KEE
Item # KEE-2-2
Quantity

Overview

Rugged construction and environmentally protected design makes these units ideal for dusty indoor environments or outdoor operation on packing or settling tables, screeners, feeders or as flow aids on bins and hoppers.

Specifications

Hz 60
Volt 230/460V
Phase 3
# Poles 2
Frame Size 01'
RPM @ 60 Hz 3600
Static Moment @ 60 Hz 1.27 in-lbs
Max Current AMP @ 230V 0.65 A
Max Current 460 @ 60 Hz 0.39 A
CF @ 60 Hz 440 lbs

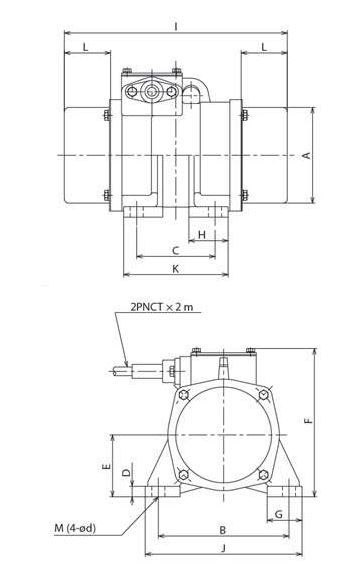

Dimensions

A: 4.34

B: 4.72

C: 1.58

D: 0.38

E: 2.22

F: 5.94

G: 1.30

I: 9.06

J: 5.72

K: 2.56

L: 1.97

M: 0.41

Downloads

  • URAS Rotary Electric Vibrators Technical Data

  • URAS SEE & KEE (Smaller Units) Operator Manual
