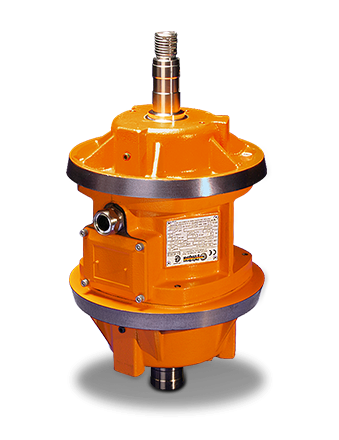

Italvibras VB 18-2510E Flanged Electric Vibrator

Brand Italvibras
Series VB-E
Model VB 18-2510E
Item # 6E1223
Quantity

Overview

The double-conical flange VB-E vibrators have been designed for use in industrial processes where explosive gas and dust particles are present, in compliance with ATEX Directive (2014/34/UE) and in compliance with IECEx Scheme. They are supplied without eccentric weights, which must be realised and mounted by the Manufacturer of the vibrating machine. In particular, these vibrators can be used in areas 1 and 2 (gas) and in areas 21 and 22 (dusts).

Specifications

Type of Flange Double Conical
RPM 1800
Ph 3
CF (lbf) 5512
Hz 60
Weight 150 lbs
# of Poles 4
Max Current (A) 2.8
Temp Class 302°F
Power Output 2.0 HP

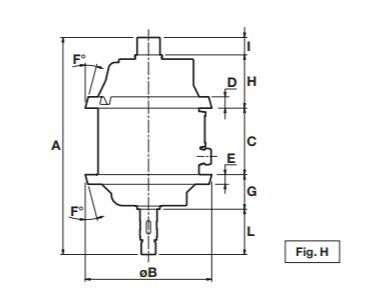

Dimensions

A: 20.37

B: 11.06

C: 6.00

D: 1.06

E: 0.91

G: 3.25

H: 5.00

L: 4.25

I: 1.63

F°: 14

Cable Entry: M32x1.5

Downloads

  • VB & MVB Series Tech Data
