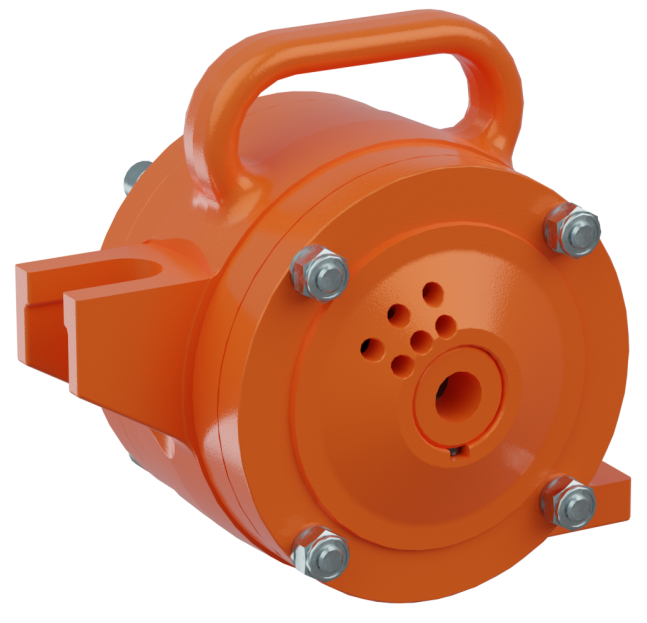

Martin CCR-5500 Vibrotor Dual Roller Vibrator

Brand Martin
Series Dual Roller
Model CCR-5500
Item # 28848
Quantity

Overview

Martin's Vibrotor CCR vibrator is a rotary pneumatic vibrator designed to prevent build-up or blockage of bulk solids in hoppers, bins, railcars, chutes, molds, and screens . It's unique design generates multiple vibrations on each orbit, providing high-frequency vibration. The Vibrotor CCR is affordable, eliminates wear problems, and can be portable or mounted. Mount options include weldable cradle lug bracket, cradle lug wedge bracket, cradle lug clamp mount, or cradle lug bolt mount. The Vibrotor CCR vibrator is available in single and dual-roller options.

Specifications

Force @ 80 PSI 7020 lbf
Speed @ 80 PSI 14000 vpm
CFM @ 80 PSI 58 cfm
Weight 32.0 lbs
Force @ 60 PSI 5596 lbf
Force @ 40 PSI 3582 lbf
Speed @ 60 PSI 12500 vpm
Speed @ 40 PSI 10000 vpm
CFM @ 60 PSI 55 cfm
CFM @ 40 PSI 42 cfm
Unbalance (in-lbs) 1.262 in-lb
Max lb Mat in Slope of Bin Wall 70200 @ Highest VPM

Dimensions

A: 9.63

B: 9.5

C: 6.75

E: 3.39

F: 4.13

K: 0.5

Downloads

  • Vibrotor CCR Vibrator Technical Data

  • Vibrotor CCR Series Operator Manual

  • MARTIN Vibration Solutions - Bin, Hopper, Feeder, Truck & Railcar Brochure

  • MARTIN ENGINEERING Catalog
