WAM 300 Slide Valve

Brand WAM
Series VL
Model 300
Item # VLS0300
Quantity

Overview

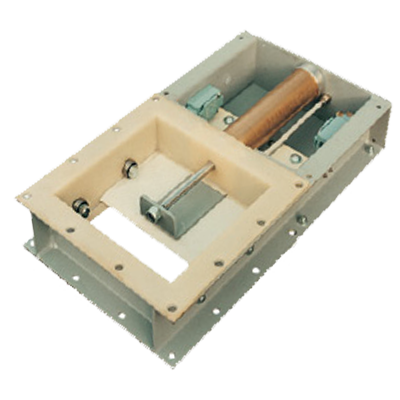

VL-type Slide Valves consist of a two-piece carbon or stainless steel frame partly coated with WAM’s SINT engineering polymer composite, as well as a sliding blade manufactured from SINT engineering polymer, carbon steel or stainless steel. The use of the unique SINT engineering polymer composites considerably increases resistance to abrasion as compared to traditional valves. Moreover, it avoids the use of flange gaskets.

Specifications

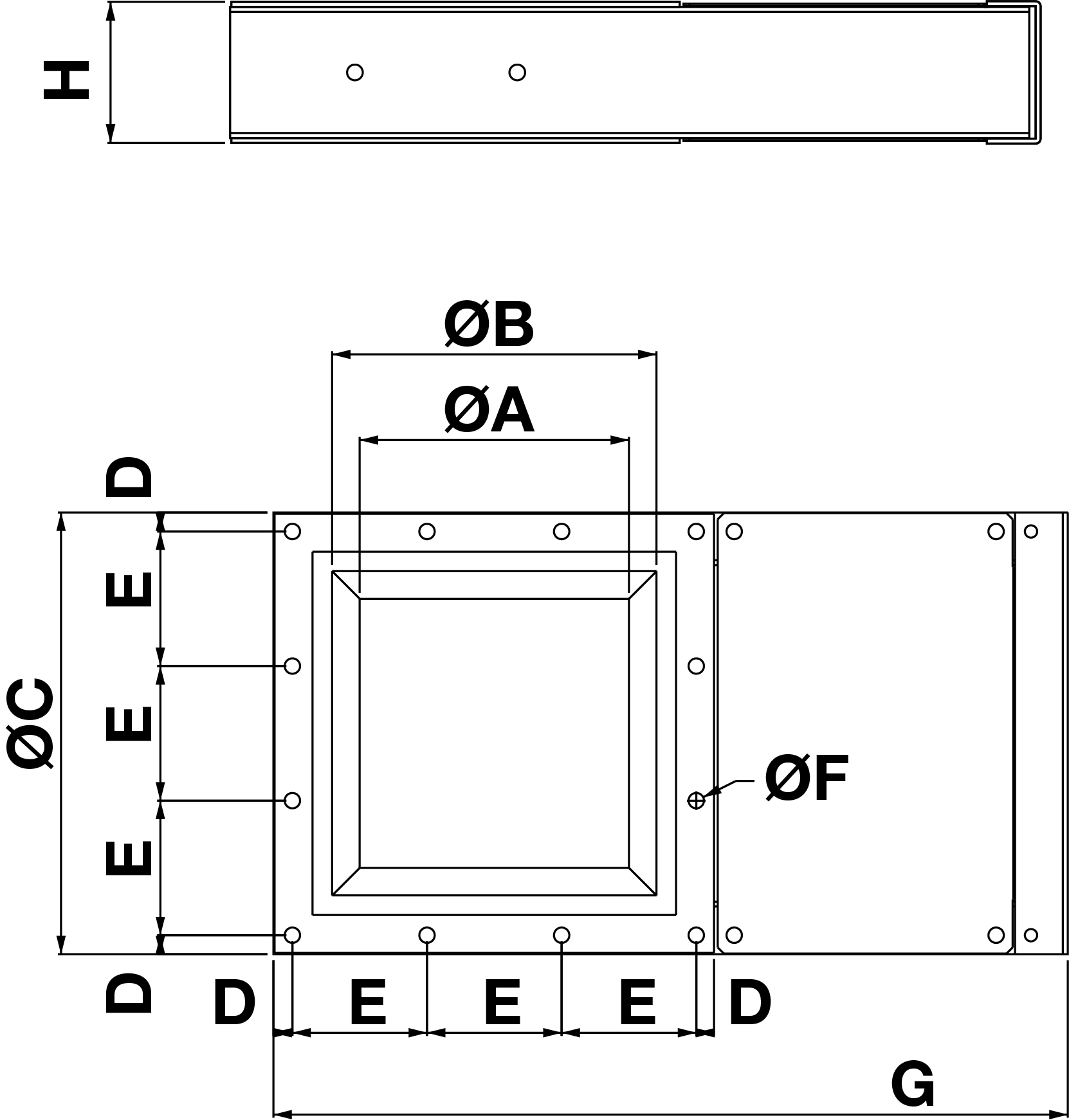

Dimensions

A: 10.63

B: 12.8

C: 16.97

D: 0.91

E: 5.05

G: 30.12

H: 4.45

0F: 0.49

Bolts: M10

Kg: 34

Downloads

  • VL Slide Gate Valve Technical Data

  • VL Slide Gate Valve Operator Manual

  • VL Slide Gate Valve Parts Breakdown

  • VL Slide Gate Valves Brochure

  • VL Valve Industry Applications Brochure

  • WAM Catalog
