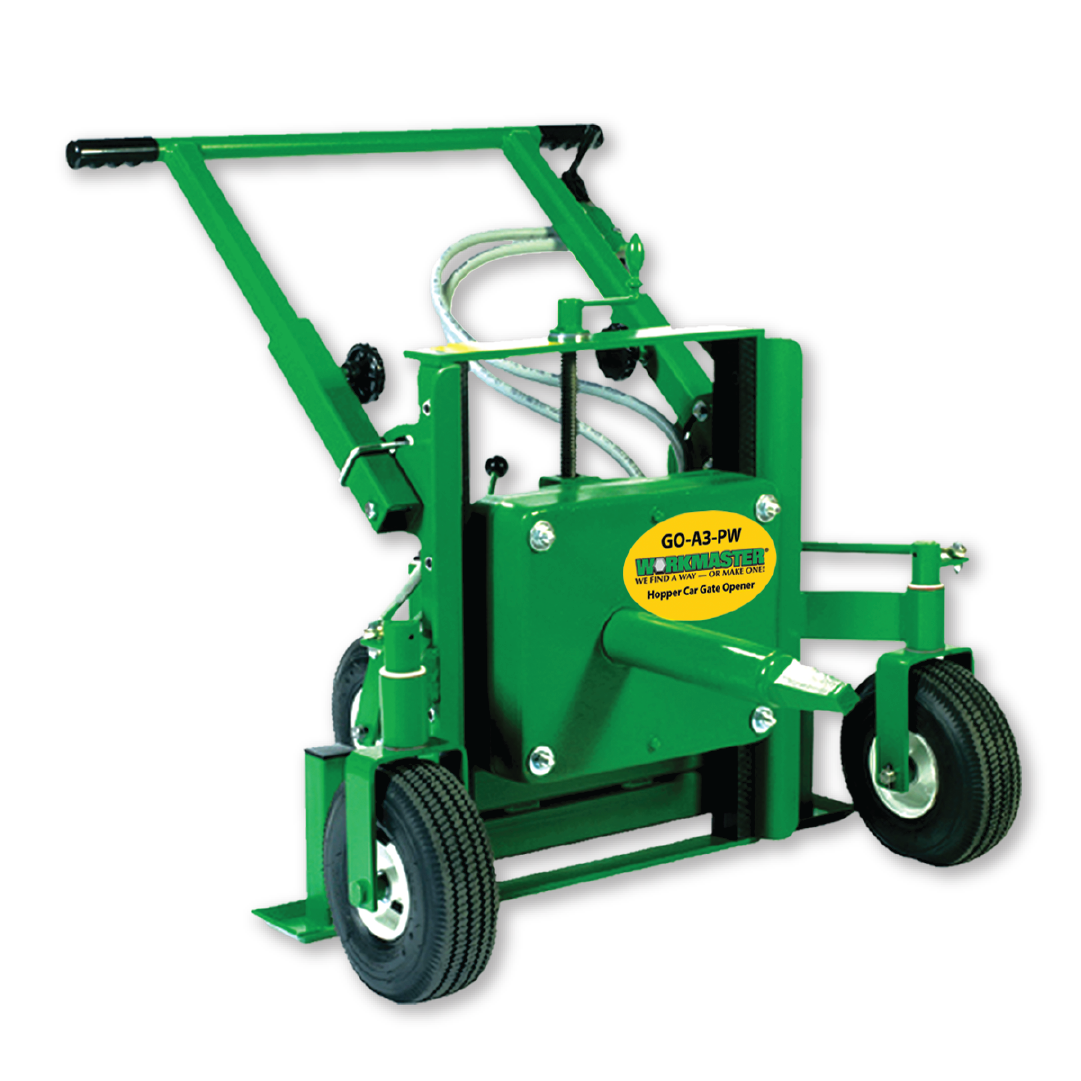

Workmaster Pivot Wheel Gate Opener

Brand Workmaster
Item # GO-A3-PW
Quantity

Overview

The GO-A3-PW, an air-powered, wheeled-cart Gate Opener, allows control of its pivot wheels (follow traveling gate), and height adjustment (accommodate varied capstans).

Specifications

RPM 8.5 Fixed
Working Torque 2700 ft-lbs max @ 8.5-RPM
CFM Non-Impacting
CFM Free Speed 70 CFM @ 90 PSI
Height Adjustable Yes
Finish Coating Acrylic Enamel Coat Finish
Inlet Coupling Universal Coupling (Chicago Type) w/ Safety Lock Pin
Shipping Weight 465 lbs
What's Included (1) FRL Assembly; (1) Drive Fitting; (1) Qt Air Tool Oil; (1) Manual
Gate Opener Weight 285 lbs
Height Adjustment Variance 7.5" to 19.75" ground to Capstan

Downloads

  • GO-A3-PW Brochure

  • WORKMASTER Gate Openers and Accessories Brochure

  • Gate Opener Application Data Sheet
