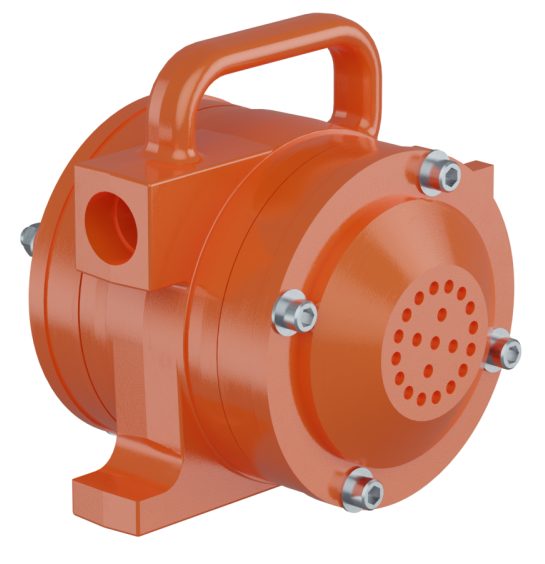

Martin Whirlwind High-Frequency Turbine Vibrator

Brand Martin
Series Turbine
Model Whirlwind
Item # 37628
Quantity

Overview

The Martin WHIRLWIND High-Frequency Turbine Vibrator is designed to produce substantial power with minimal noise compared to other high-force, high-frequency pneumatic turbine vibrators. It delivers an impressive output of over 14,000 lbf (63 kN), depending on the application, effectively doubling the force output of the most powerful competitive models. The units are easy to mount on cradle lug brackets or railcar wedge brackets and operate quietly to comply with OSHA noise requirements.

Specifications

Force @ 80 PSI 12753 lbf
Speed @ 80 PSI 10100 vpm
CFM @ 80 PSI 28 cfm
Weight 40.0 lbs
Force @ 60 PSI 8820 lbf
Force @ 40 PSI 5280 lbf
Speed @ 60 PSI 8400 vpm
Speed @ 40 PSI 6500 vpm
CFM @ 60 PSI 25 cfm
CFM @ 40 PSI 21 cfm
Unbalance (in-lbs) 4.4 in-lb
dBA 72 - 76 dBA

Dimensions

Downloads

  • Whirlwind High-Frequency Turbine Vibrator Technical Data

  • Whirlwind High Frequency Turbine Vibrator Operator Manual

  • MARTIN Vibration Solutions - Bin, Hopper, Feeder, Truck & Railcar Brochure

  • MARTIN ENGINEERING Catalog
