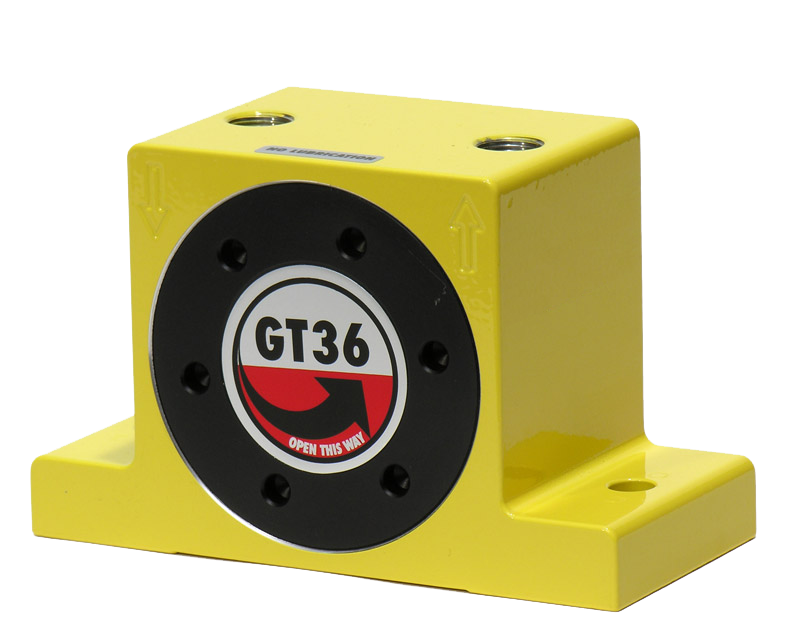

Vibratek VGT-36 Turbine Vibrator

Brand Vibratek
Series VGT Series
Model VGT-36
Item # 12-23600
Quantity

Overview

The Vibratek VGT Series Vibrators assist the flow of materials from bins, hoppers, and chutes, and compact silica sand in molds of foundries.

Specifications

Force @ 90 PSI 1617 lbf
Speed @ 90 PSI 13000 vpm
CFM @ 90 PSI 26 cfm
dBA 60 - 75 dBA
Operating Temp 302°F
I/O Port 3/8"
Weight 5.10 lbs
Force @ 60 PSI 1205.00 lbf
Speed @ 60 PSI 10000 vpm
CFM @ 60 PSI 18.5 cfm
Force @ 30 PSI 740.00 lbf
Speed @ 30 PSI 8000 vpm
CFM @ 30 PSI 11.5 cfm

Dimensions

Dim A: 3.94 "

Dim B: 2.87 "

Dim C: 6.30 "

Dim D: 5.12 "

Dim E: 0.79 "

Dim G: 0.38 "

Dim F: 0.43 "

Downloads

  • VGT-36 Technical Data

  • VGT Series Operator Manual
