Workmaster Pivot Wheel Gate Opener

Brand Workmaster
Item # GO-A8-PW
Quantity

Overview

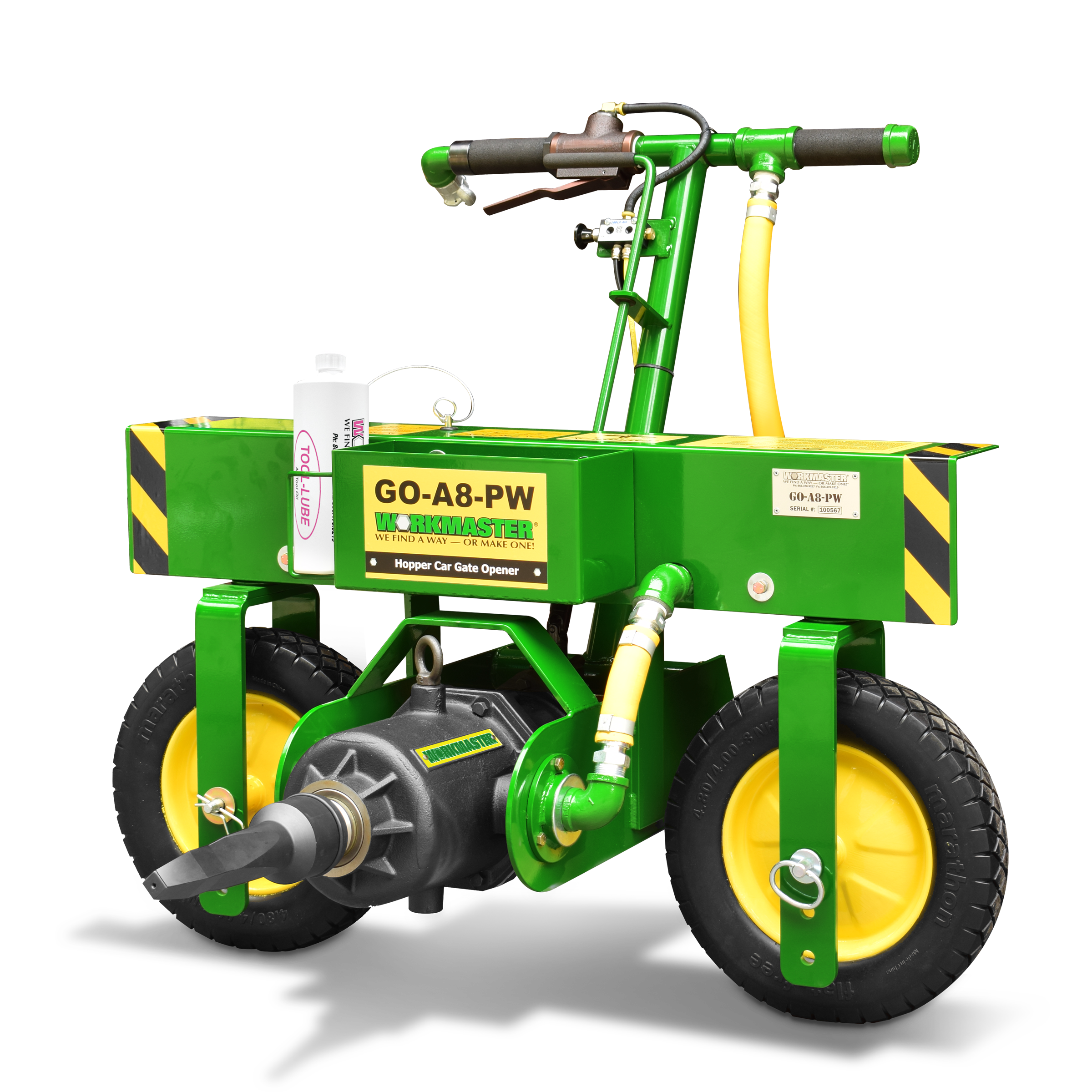

The GO-A8-PW, the flagship of our line, is an air-powered Gate Opener on a wheeled cart with pneumatically controlled pivot wheels (follow traveling gate or moving train), and manual height adjustment (accommodate varied-height capstans).

Specifications

RPM 100 - 1400 Throttle
Working Torque 1,000 to 13,000 ft-lbs; Recoilless, Self-Regulating @ 1400 RPM
CFM 114 CFM @ 85 PSI
CFM Free Speed 148 CFM @ 85 PSI
Height Adjustable Yes
Finish Coating Baked-On Powder Coat Finish
Inlet Coupling Universal Coupling (Chicago Type) w/ Safety Lock Pin
Shipping Weight 530 lbs
What's Included (1) FRL Assembly, (1) Drive Fitting w/ Pin & Ring Retainer; (1) 1-Qt Air Tool Oil; (1) Operating Video; (1) Manual
Gate Opener Weight 305 lbs
Overall Dimensions 50"L x 42"W x 42"H (w/ Drive Fitting)
Inlet Coupling w/ Size Universal Coupling (Chicago Type) w/ Safety Lock Pin

Downloads

  • GO-A8-PW Operator Manual

  • GO-A8-PW Maintenance & Parts Manual

  • GO-A8-PW Brochure

  • WORKMASTER Gate Openers and Accessories Brochure

  • Gate Opener Application Data Sheet
