Precision Pulley & Idler Inverted V-Return Idler

Brand Precision Pulley and Idler
Series Return Idler, V-Shape
Item # D6-15IVR-78SB-4
Quantity

Overview

Return Idlers support the belt during the return path and meet or exceed the CEMA load requirements. Rubber Discs are used when sticky, corrosive, or abrasive materials are present. Massed end discs are standard.

Specifications

Belt Width 78"
Roll Diameter 6"
Weight 188 lbs
CEMA Series CEMA D (Medium Duty)

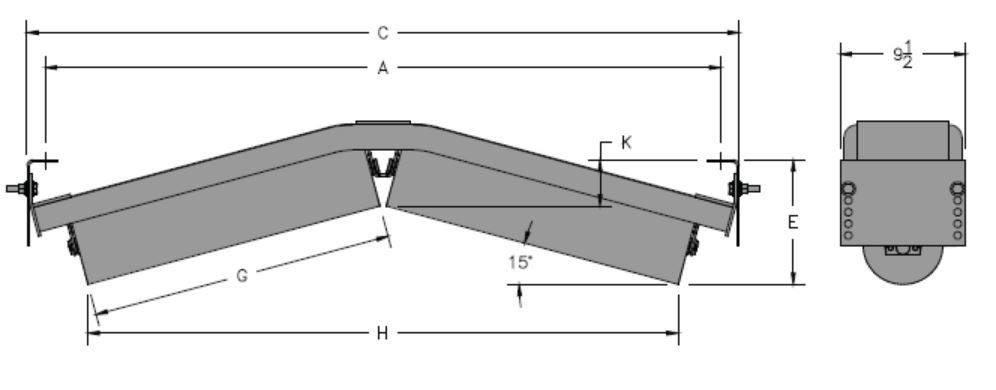

Dimensions

Distance Between Mount Holes (A): 87.00 "

Overall Length (C): 88.75 "

Roller Height (E): 9.28 "

Roller Length (G): 41.05 "

Distance Between Roller Ends (H): 79.78 "

Height of Center Roll (K): -1.34 "
